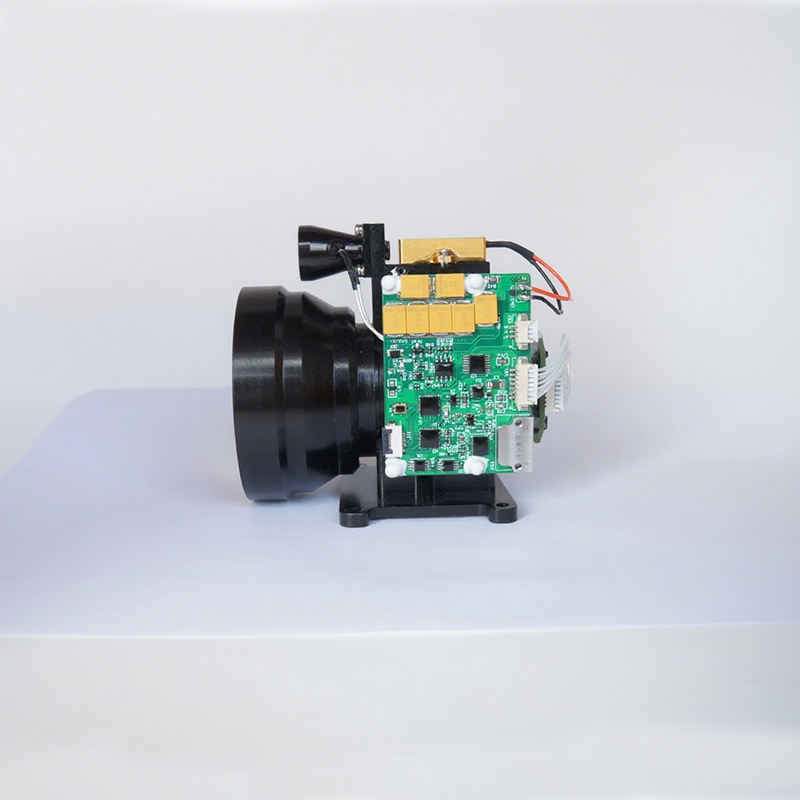

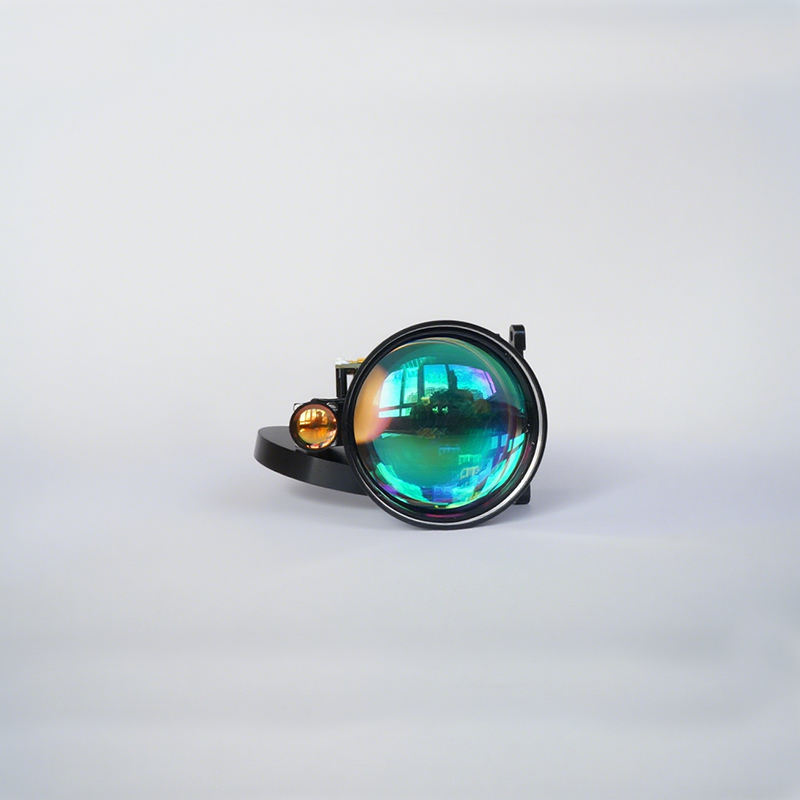

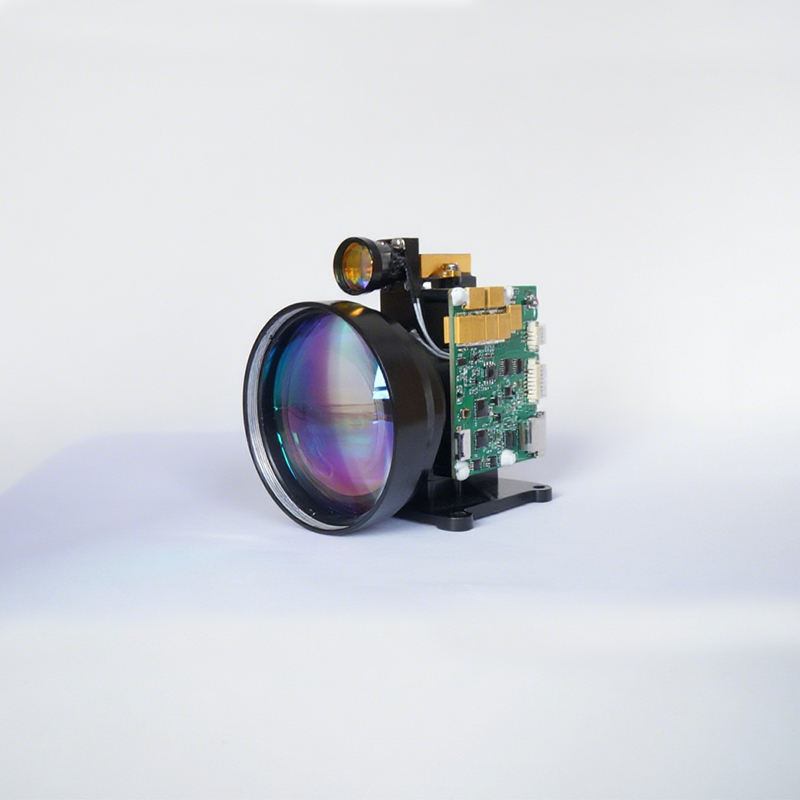

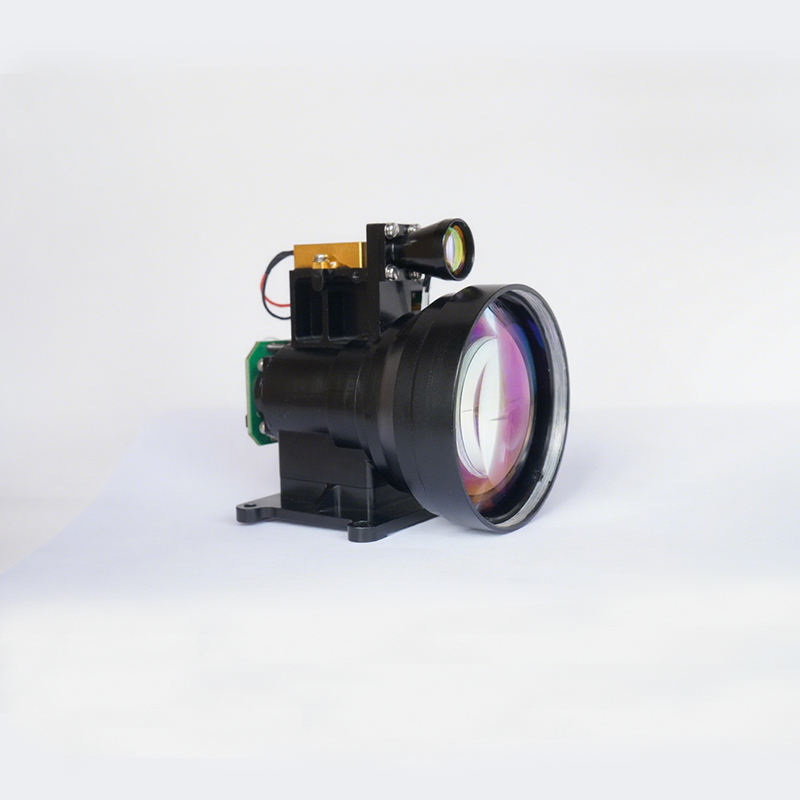

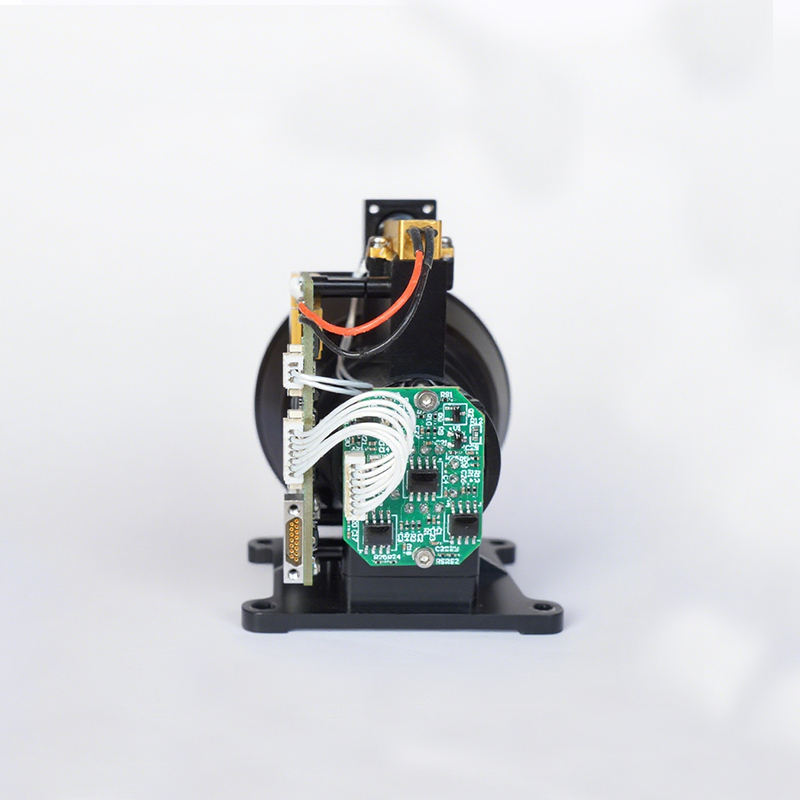

ELRF-17 Long-Range HD Camera Target Positioning System
Price range: ¥26,820.0 through ¥27,461.0
The ELRF-17 is an advanced industrial long-range laser rangefinder system integrated with HD imaging and target positioning capabilities for both day and night operations. With a maximum detection range of up to 17 km, it delivers precise distance measurement and reliable target tracking in complex environments.
Equipped with a 1535 nm laser, 7× optical magnification, and a robust metal housing, the system ensures stable performance and durability under extreme conditions. Its IP67 protection rating guarantees resistance to dust and water, making it ideal for surveillance, security, and industrial field applications.
Supporting adjustable measuring frequency and wide voltage input, the ELRF-17 also offers OEM/ODM customization to meet diverse project requirements.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Laser Rangefinder Target Positioning System |
| Model | ELRF-17 |
| Brand | NIK |
| Application | Industrial, Surveillance, Outdoor |
| Range | ≤17,000 m |
| Minimum Range | ≤100 m |
| Accuracy | ±3 m |
| Magnification | 7× |
| Field of View | 17 km |
| Laser Wavelength | 1535 nm ±5 nm |
| Laser Divergence Angle | 0.5 mrad ±0.1 mrad |
| Measuring Frequency | 1–10 Hz (Adjustable) |
| Resolution Range | 50 m |
| Protection Level | IP67 |
| Material | Metal |
| Power Supply | DC 18–32V |
| Weight | ≤1.4 kg |
| Dimensions | ≤180 × 65 × 110 mm |
| Operating Temperature | -40°C ~ +60°C |
| Storage Temperature | -50°C ~ +65°C |
| Origin | Guangdong, China |
| Warranty | 3 Years |
| Customization | OEM / ODM Supported |
Product Overview
The ELRF-17 is an advanced industrial long-range laser rangefinder system integrated with HD imaging and target positioning capabilities for both day and night operations. With a maximum detection range of up to 17 km, it delivers precise distance measurement and reliable target tracking in complex environments.
Equipped with a 1535 nm laser, 7× optical magnification, and a robust metal housing, the system ensures stable performance and durability under extreme conditions. Its IP67 protection rating guarantees resistance to dust and water, making it ideal for surveillance, security, and industrial field applications.
Supporting adjustable measuring frequency and wide voltage input, the ELRF-17 also offers OEM/ODM customization to meet diverse project requirements.
